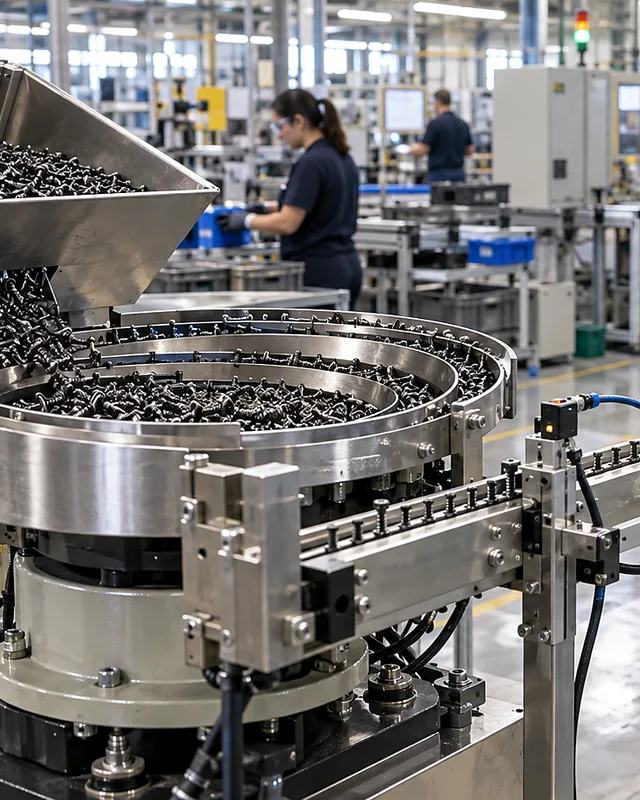

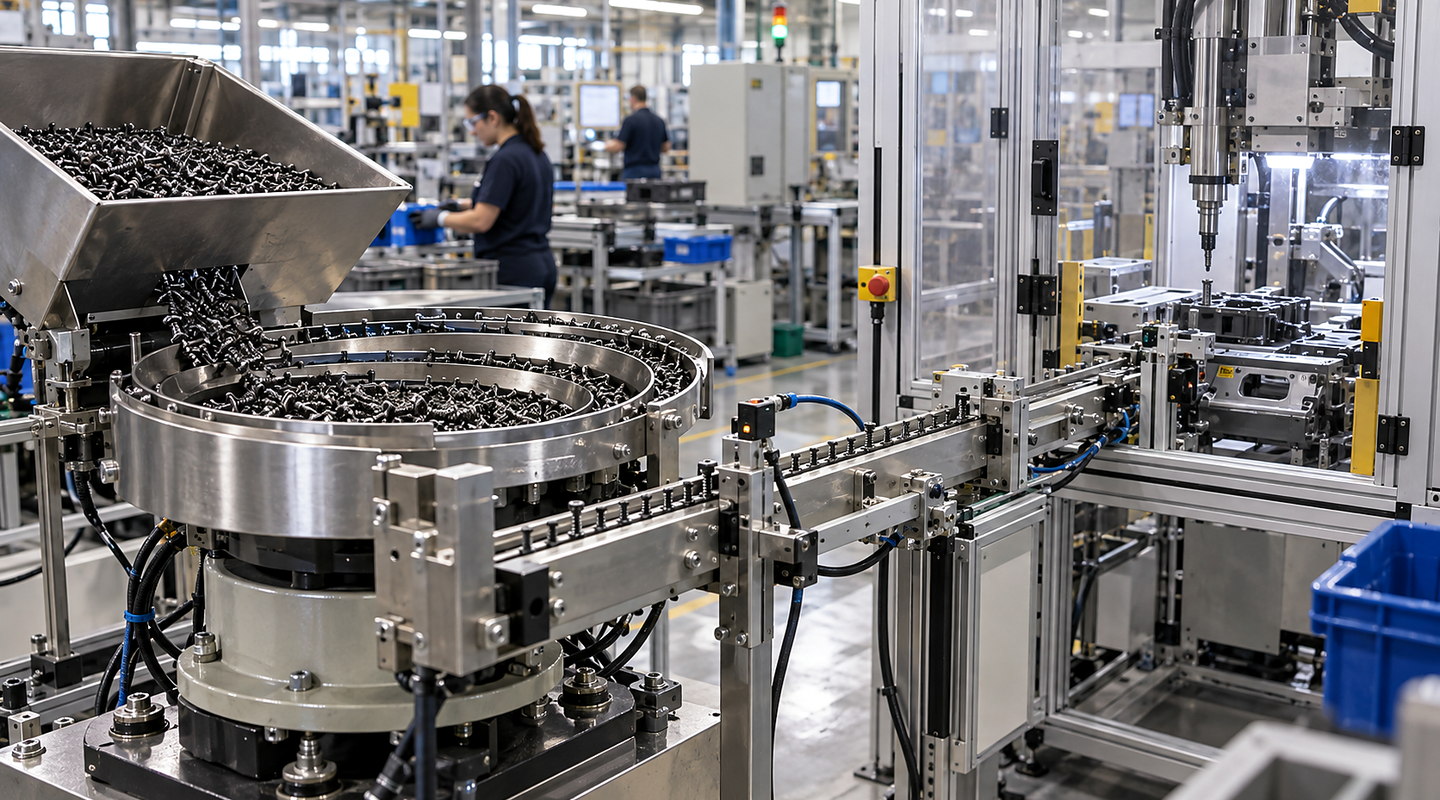

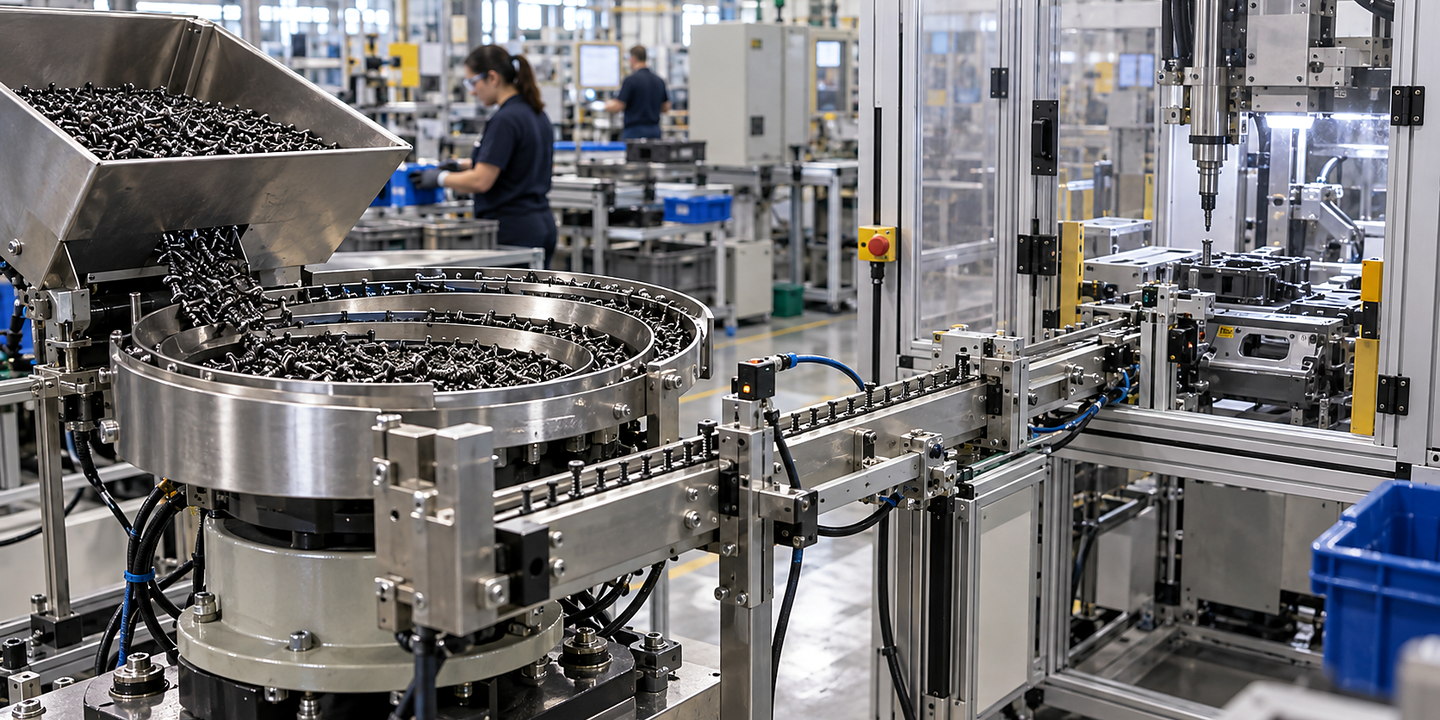

Threaded insert feeders separate and present inserts to an insertion machine or robot. Begin with the required leading end, the features that distinguish variants and the receiving tool’s loading sequence, then trial single-part delivery without damaging the insert.
Speak directly with Sorting Solutions about threaded-insert feeding for assembly.
Supply inserts across the length, thread and external-feature range, with the required leading end identified. Define the hand-off position and the receiving tool’s demand signal. Trial orientation and single-part release, checking nested parts, damaged threads and recovery after an interrupted insertion cycle.
Provide length, outer profile, thread and any flange, slot or end feature for each reference. Mark visually similar variants and their approved recipes. A small difference that matters to assembly may be difficult to distinguish during bulk feeding unless it is deliberately addressed.
Use a drawing or photograph to identify the orientation at discharge and at the insertion tool. State whether rotational position matters as well as end-for-end direction. Include the support needed to preserve that pose through the final transfer.
Define permitted tooling contact and unacceptable damage to threads, knurls or other assembly features. Include ordinary surface finish and residues in sample trials. Assess condition after circulation and transfer, not only on inserts that travel through the system once.
Observe whether inserts can sit inside, bridge across or travel together with other parts in the supplied condition. Trial the full geometry range and normal bulk level. Define how a suspected pair or incorrectly oriented insert is stopped from entering the receiving tool.
Specify call-for-part, ready, occupied and cycle-complete states as needed by the host machine. Define what happens if insertion stops after an insert has already been released. The feeder and tool must agree whether the part is still present before another is delivered.
Include replenishment, empty supply, occupied nests and changes between approved references. Measure correctly presented inserts accepted by the insertion process. Use the insert feeder checklist to document the part family and delivery conditions.

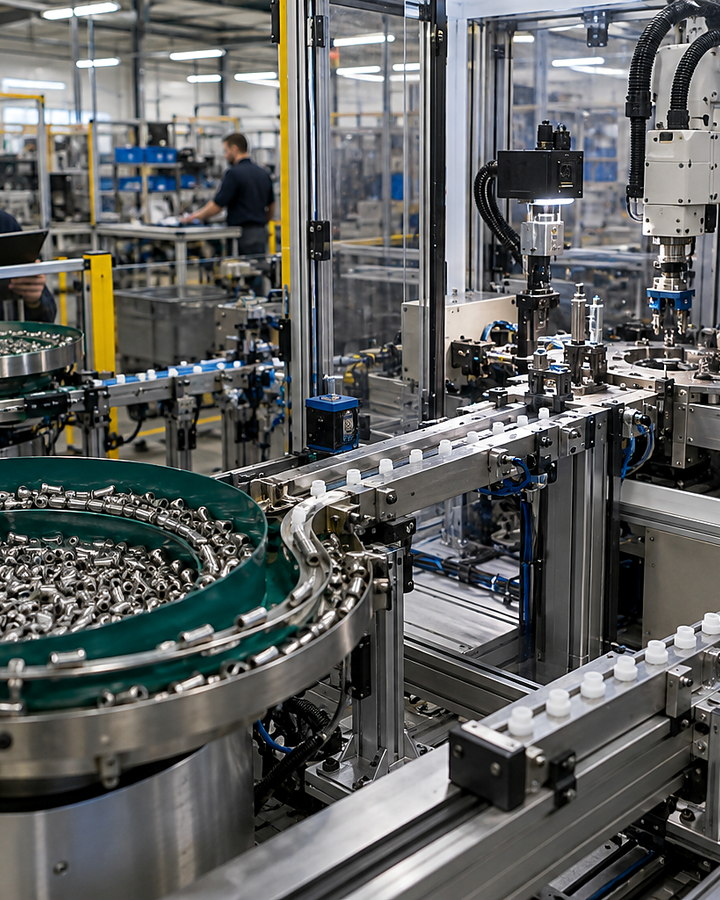

The feed route must both separate loose inserts and release the accepted insert in the pose required by the insertion machine. Assess those stages together when comparing dedicated and more flexible delivery methods.
Provide samples, drawings, variant references and the required leading end.
Assess nesting, damage and single-part release with ordinary bulk supply.
Agree support, location, demand signals and the response to interrupted insertion.
Run approved variants and fault scenarios while measuring accepted delivery.
Your final solution for threaded-insert feeding for assembly must reflect the law, current standards and site-specific risks that apply to your installation.
Threaded inserts can differ in the external features used for orientation even when they share a thread size. Define the component and its insertion process together so the feeder delivers a part the tool can accept.
Record flanges, tapers, knurls, slots and other features that distinguish the required end. Mark surfaces that must not be damaged or used as a gripping datum. If both ends are permitted, state that explicitly so the feeding concept is not burdened with an unnecessary orientation requirement.
Create a reference set for changes in length, outside diameter, thread and external geometry. Decide which differences the feeder tooling can physically exclude and which need a separate identification method. Do not assume that a part-present sensor identifies the insert specification.
State how the receiving tool requests and confirms a part and what support is needed until the tool has control. Keep feeding separate from the approved insertion settings. The feeder should not be specified to compensate for an undefined insertion process or an uncertain receiving fixture.

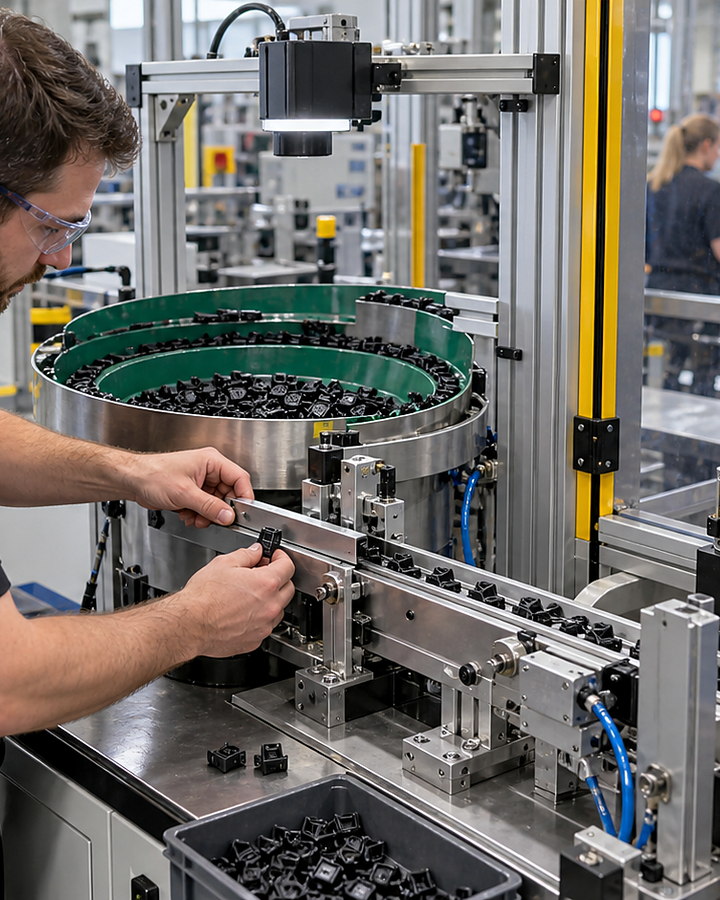

Account for inserts remaining in transfer tubes, pockets, tracks and the tool at changeover. Demonstrate the first accepted delivery after a stop and the response to an occupied receiver. Retain the tooling identification with the accepted sample set so the arrangement can be reproduced at the next format change.
